TX Series Hydraulic Torque Wrench Hex Type

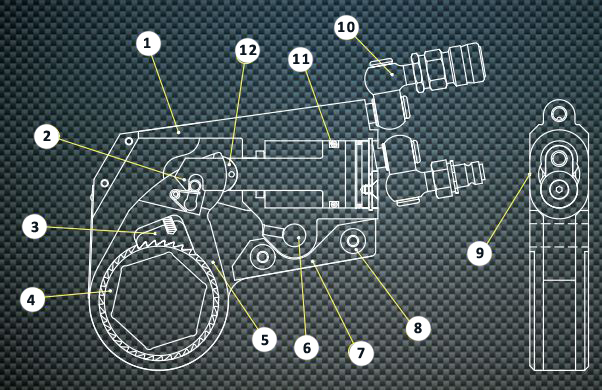

1.  Patented "Peanut-Shaped" Cylinder
Fit both the cylinder and link in confined areas

2.  Engagement Rod
Automatically engages link on the first stroke

3.  Never-Lock Drive Pawl
Ensures tool will NEVER lock on

4.  Multi-Tooth Ratchet
Allows for 27° torque stroke accuracy

5.  One Piece Drive Plate
Robust alloy provides for small nose radius

6.  Link Pin
One pin for link to cylinder engagement,no tools required

7.  In-Line Reaction Pad
Assures torsion free reaction every time

8.  Steel Alignment Pin
Assures equal load displacement between side plates

9.  Completely Flat Design
Cylinder and link width are equal for tight fits

10.  360° x 360° Swivel
Allows hose to be cleared on all applications

11.  Proprietary Piston Seal
Patented technology provides years of maintenance free use

12.  Slider
Prevents wear of piston or drive plate Reduces costly repairs
