TU Series Hydraulic Torque Wrench Square Drive Type

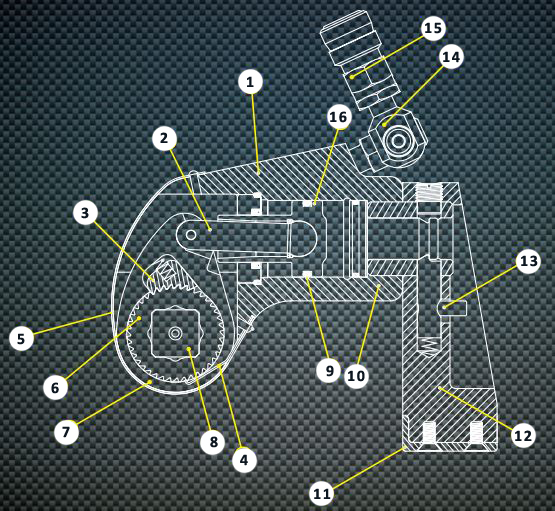

1.  Patented Mono-Body Housing
A TorcUP exclusive!

2.  Balanced Drive Rod
Side load-free piston movement

3.  Multi Tooth - Drive Segment
Ensures up to 27 degree torque stroke

4.  Anti-Back Lash Mechanism
Provides hands free operation

5.  Laser Engraved Torque Chart
No more searching for charts

6.  Multi-Tooth Ratchet
Strong Vascomax teeth provide strength,accuracy

7.  One Piece Drive Plate
Provides longer life durability

8.  Push-Through Drive
Simply push to switch from loosen to tighten

9.  Single Seal Piston
Assures extended maintenance free operation

10.  Direct Housing Reaction
Allows use of tool without reaction arm

11.  Steel Reaction Boot
Field replaceable feature.

12.  Long Length Reaction Arm
Allows for reaction on all applications

13.  Reaction Arm Release Button
Protected within reaction arm housing

14.  360° x 360° Swivel
Protected within reaction arm housing

15.  No Drip Quick Connect Couplers
Assures easy and safe operation
