HYDRAULIC CYLINDERS / JACKS - 700 BAR
TCS Series Compact Profile Cylinders
1. Best Solution where Minimal Stroke is required.
2. Base Mounting Holes For Easy Figuring
3. Bronze Brazing on Stop Ring and Base of Plunger
4. Comes with Handle in Some Models

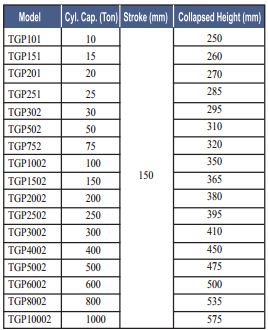

TGP Series Threaded Ram Jacks
1. Threaded Ram with Safety Lock Nut.
2. Single Acting and Single Return.
3. Applications requiring sustained load holding
4. Provided With Carrying Handles in Some Models

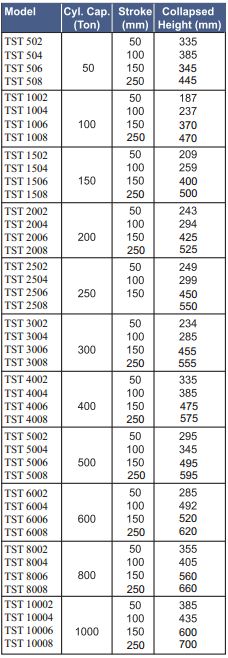

TST Series Threaded Nut Cylinders
1. High Tonnage Lifting Cylinders.
2. Mechanical Threaded Locking for Safe operations.
3. Perfect Solution for Construction activities
4. Customized Longer stroke available on special Request
TSM Series Flat Jacks
1. Flat Design Allows Operation in Close tight Spaces
2. Single Acting and Spring Return
3. Grooved, Hardened Piston Absorbs Full Force
4. Provided With Carrying Handles in Some Models

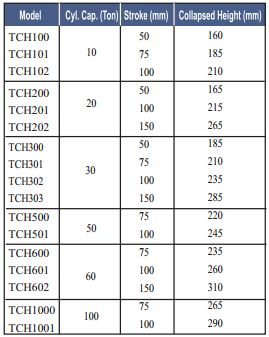

TCH Series Hollow Ram Jacks
1. Hollow Plunger design.
2. Best suitable for pull and Push operation.
3. Collar threads design to absorb full force
4. Enhanced side loading capacity.

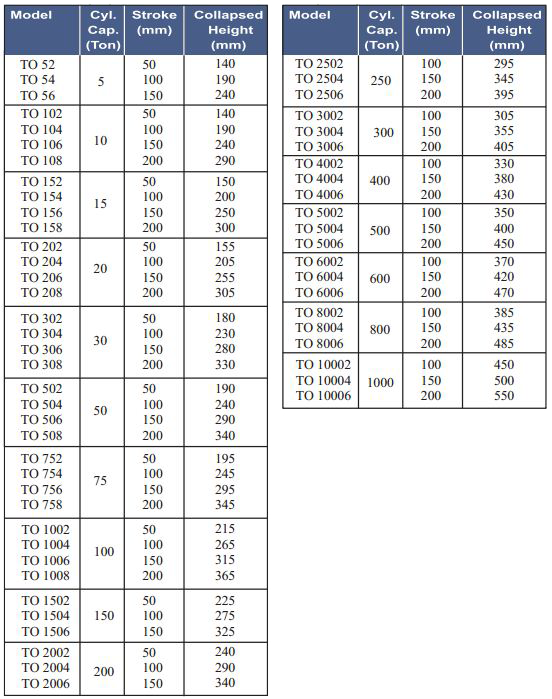

TO Series Standard Multi purpose Jacks
HYDRAULIC CYLINDERS / JACKS - 700 BAR

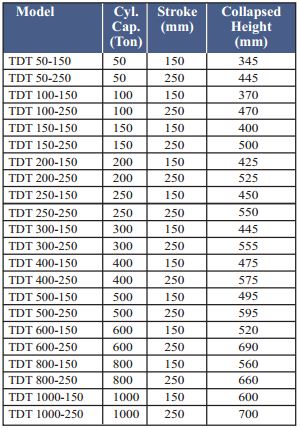

TDT Series Double Acting Threaded Ram
1. Sustained Load Holding with Lock Nut.
2. Fast and complete Ram Retraction.
3. Jack can be pulled back with Ram Fixed, in Horizontal Sequential pushing

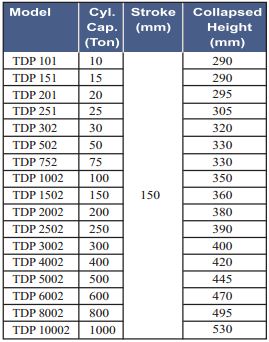

TDP Series General Purpose Double Acting Plain Ram
1. Oil Return
2. Used for lifting, positioning, Horizontal or Vertical Application
3. Used in Heavy Fabrication, Ship Building and Construction Industries
TDH Series Hollow Ram Double Acting Oil Return
1. Use as Hydraulic Pullers with Mechanical Accessories for removing assembling Bearing Bushes, Pins, Cylinder Liners, Pulling tubes of Heat Exchangers, Gears & Flanges of Machinery.
2. As bar / Pre-Stressing Jacks in construction sites.
